RFB

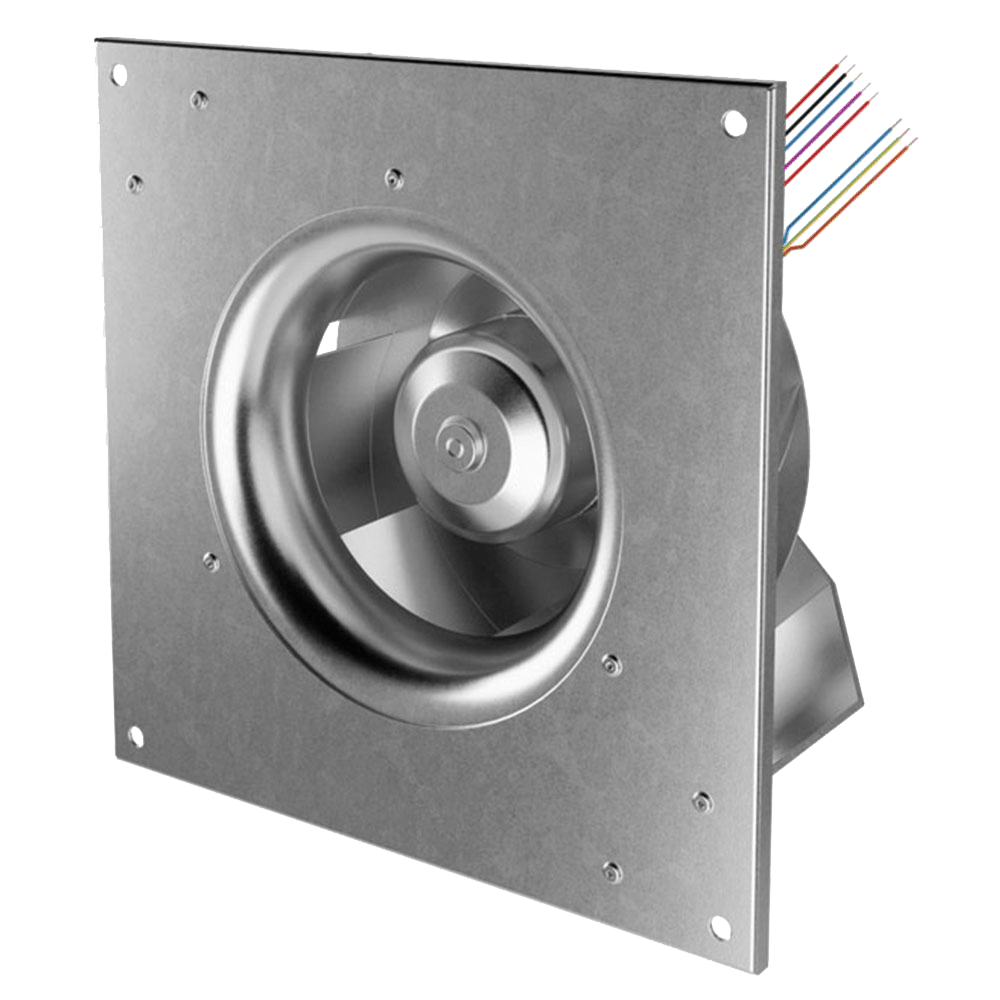

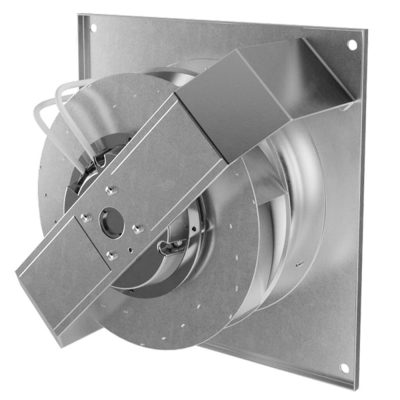

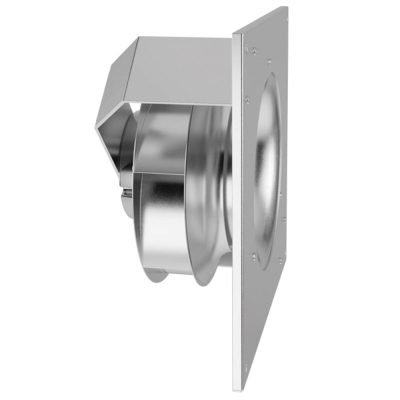

High efficiency Plug Fans with reverse blade impeller

RFB plug fans hold a reverse blade impeller and external rotor brushless EC motor with integrated inverter. These fans feature a single inlet impeller with backward curved blades, designed for reduced noise and energy consumption.

  • Single inlet impeller with backward curved blades in plastic or metal material.
  • Does not include an auger which is replaced by the containment plenum of the fan itself.
  • External rotor motor, IP 44/55 motor protection degree, with an integrated inverter.
  • Closed thermal protector.
  • Continuous speed regulation via external 0-10Vdc signal or potentiometer (accessory) for manual regulation.
  • Soft-start control.
  • Flow rate up to 15000 m³/h.
  • Static pressure up to 1200 Pa.
RFB

Technical Data RFB

Fan Type Fan CODES ERP2015 motor power (wout) Regulation motor ip power supplies
RFB 190/45 E5 XPL SM00064 1F 1V 117200E < 125W 107 0-10 Vdc - PWM 54 230/1/50-60
RFB 190/45 E3 XPL SM00064 1F 1V 1172009 < 125W 107 0-10 Vdc - PWM 54 230/1/50-60
RFB 220/45 E5 XPL SM00065 1F 1V 117200A < 125W 125 0-10 Vdc - PWM 54 230/1/50-60
RFB 220/45 E3 XPL SM00065 1F 1V 1172000 < 125W 125 0-10 Vdc - PWM 54 230/1/50-60
RFB 225/50 E5 XPL SM00066 1F 1V 117200C < 125W 116 0-10 Vdc - PWM 30 230/1/50-60
RFB 225/50 E3 XPL SM00066 1F 1V 117200B < 125W 116 0-10 Vdc - PWM 30 230/1/50-60
RFB 250/50 E5 XPL5 2111010 1F 1V 1172004 OK 170 0-10 Vdc - PWM 54 230/1/50-60
RFB 250/50 E3 XPL5 2111010 1F 1V 1172007 OK 170 0-10 Vdc - PWM 54 230/1/50-60
RFB 250/50 E5 XPL5 211100V 1F 1V 1172002 OK 200 0-10 Vdc - PWM 30 230/1/50-60
RFB 250/50 E3 XPL5 211100V 1F 1V 1172006 OK 200 0-10 Vdc - PWM 30 230/1/50-60
RFB 280/50 E5 XPL3 211100Z 1F 1V 1172003 OK 270 0-10 Vdc - PWM 30 230/1/50-60
RFB 280/50 E3 XPL3 211100Z 1F 1V 117200D OK 270 0-10 Vdc - PWM 30 230/1/50-60
Contact us for more info

Related products

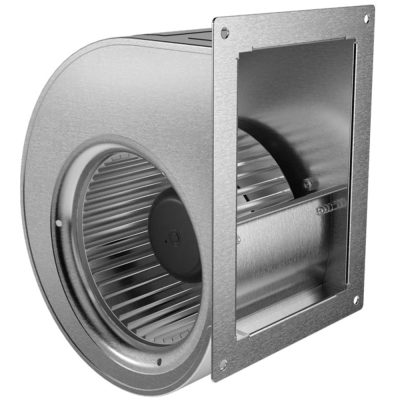

SAREB
SAREB

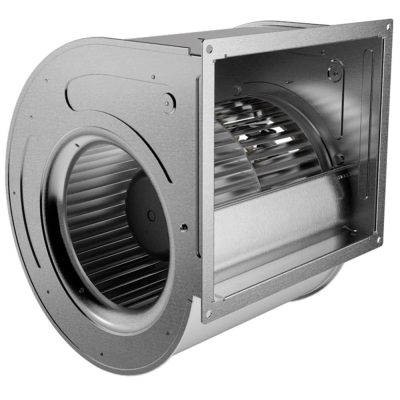

DAREB
DAREB
Coilcare
Coilcare
Induct/Induct X
Induct/Induct X
DARE
DARE

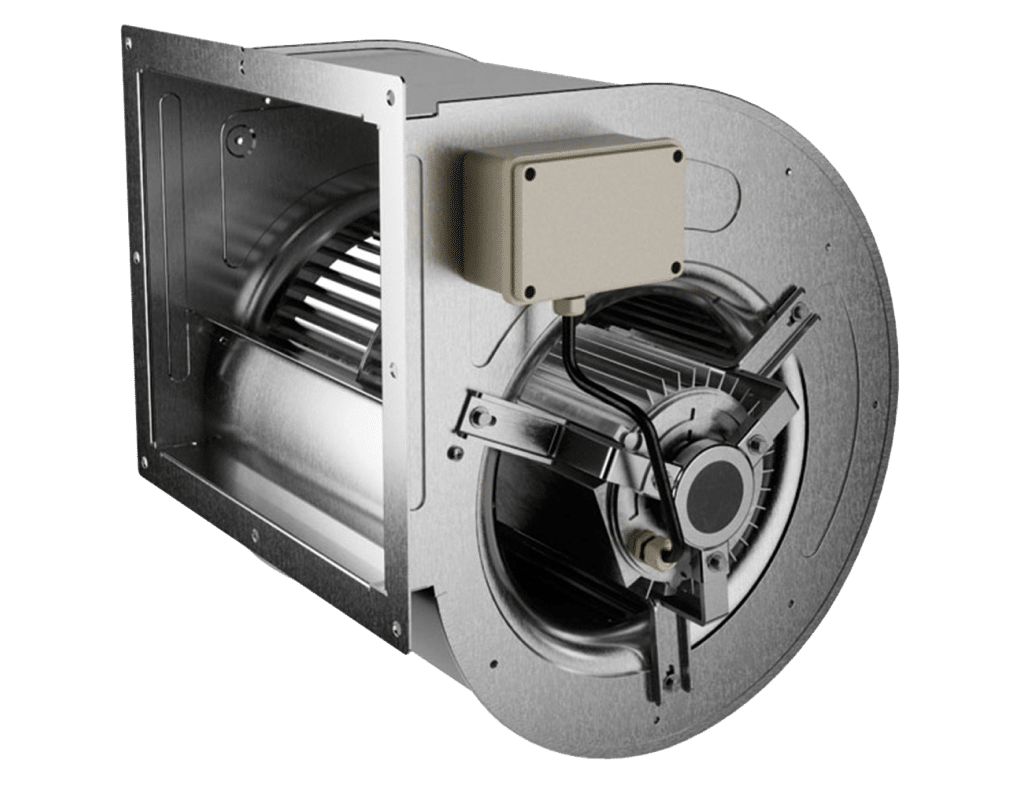

DAIN
