MCK

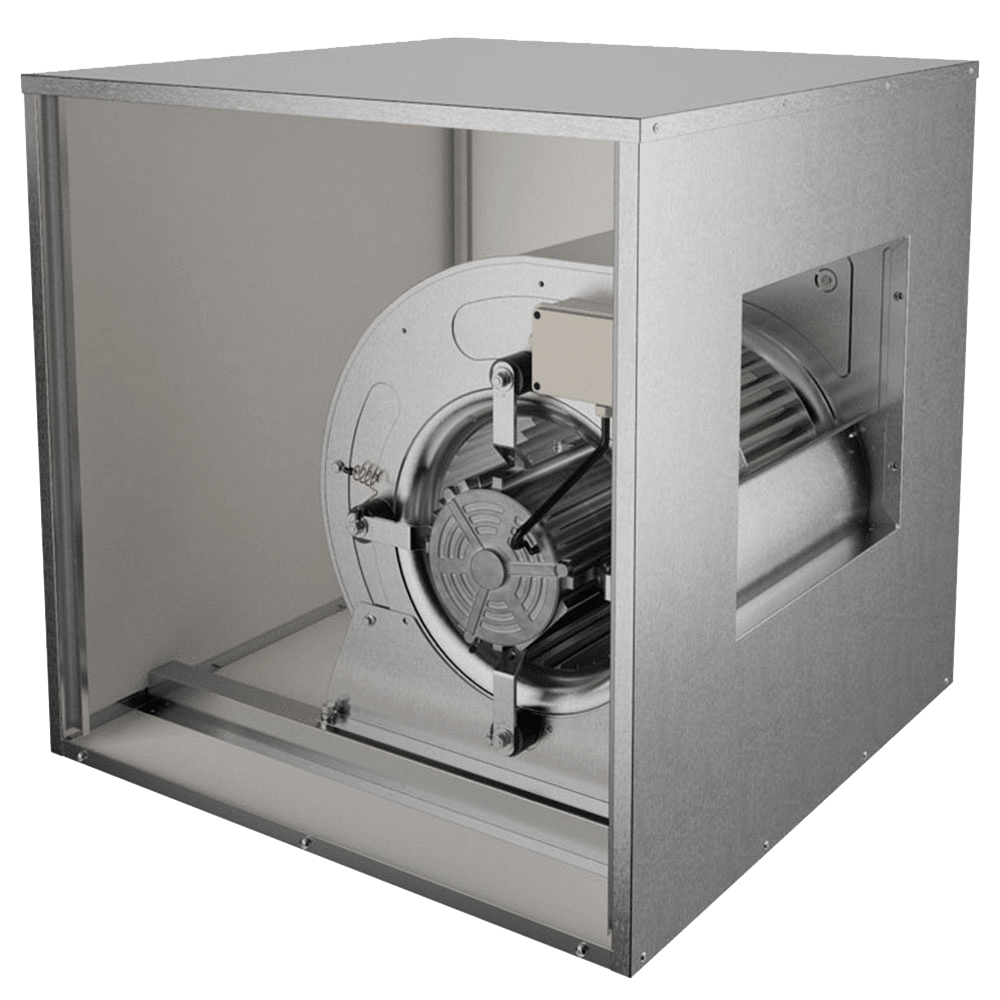

Best-in-class fume extraction unit

A superior fume extraction unit equipped with a centrifugal fan and low-noise forward-curved impeller that is directly coupled with a single-phase or three-phase motor. The "V" configuration of the unit provides exceptional performance and reliability, making it the perfect solution for a variety of applications.

  • Centrifugal fan.
  • Low-noise forward-curved impeller.
  • Single-phase or three-phase motor
  • Extruded aluminium profiles, closed with galvanised sheet panels, covered with 5mm thick sound-absorbing cl.1 fireproof sponge.
MCK

Technical Data MCK

Fan Type Fan CODES ERP2015 motor power (wout) Pole motor ip power supplies
MCK 7/7 X18 211100G 1F 4P 1V 122100L OK 120 4 44 230/1/50
MCK 9/7 X18 2011017 1F 4P 1V 122100S OK 420 4 55 230/1/50
MCK 10/8 X18 2011018 1F 4P 1V 122100T OK 550 4 44 230/1/50
MCK 12/12 X18 2011009 1F 6P 1V 122100U OK 560 6 54 230/1/50
MCK 12/12 X18 201100U 1F 6P 3V 122100Q OK 735 6 55 230/1/50
MCK 12/12 X18 201100P 3F 6P 1V 122100V OK 1100 6 55 230-400/3/50
MCK 15/11 X18 201100E 3F 6P 1V 122100Z OK 2200 6 55 230-400/3/50
Contact us for more info
