DAREB

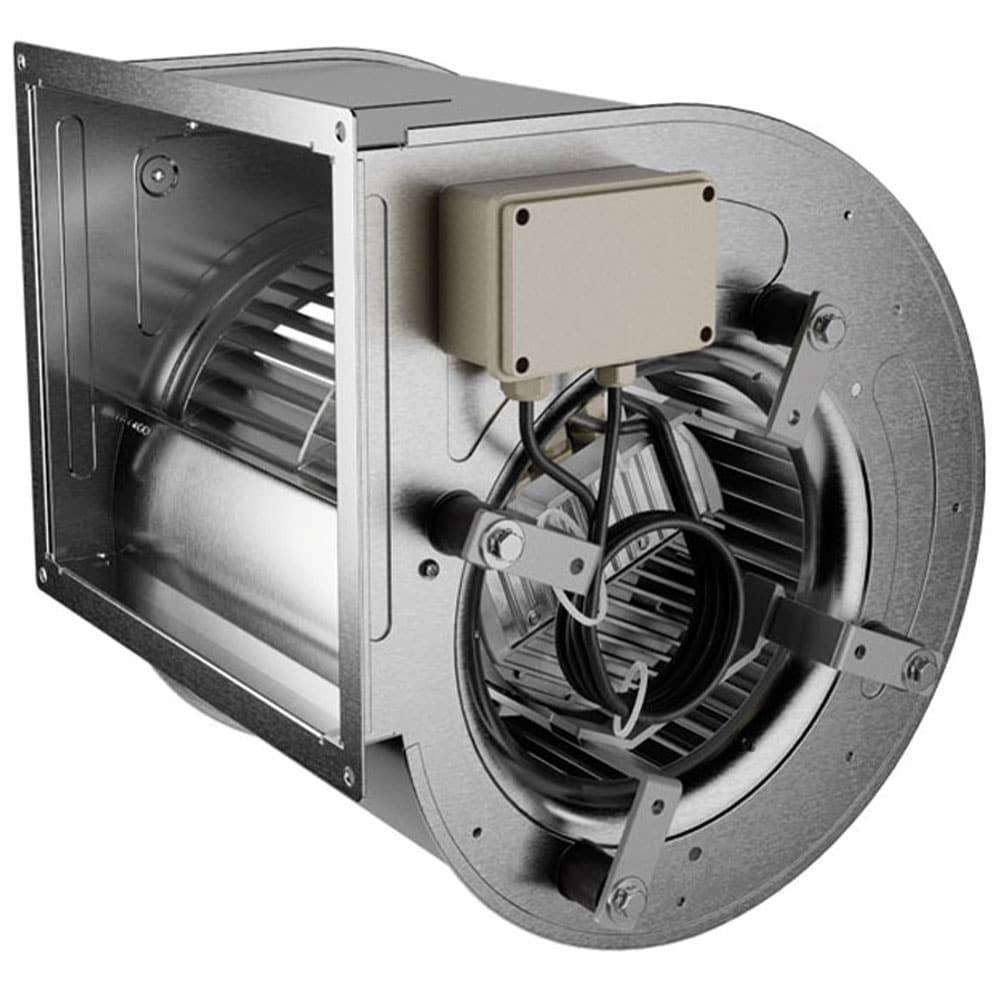

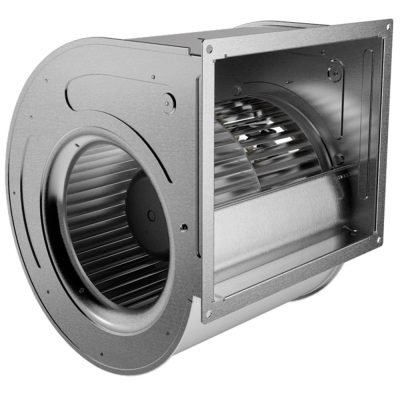

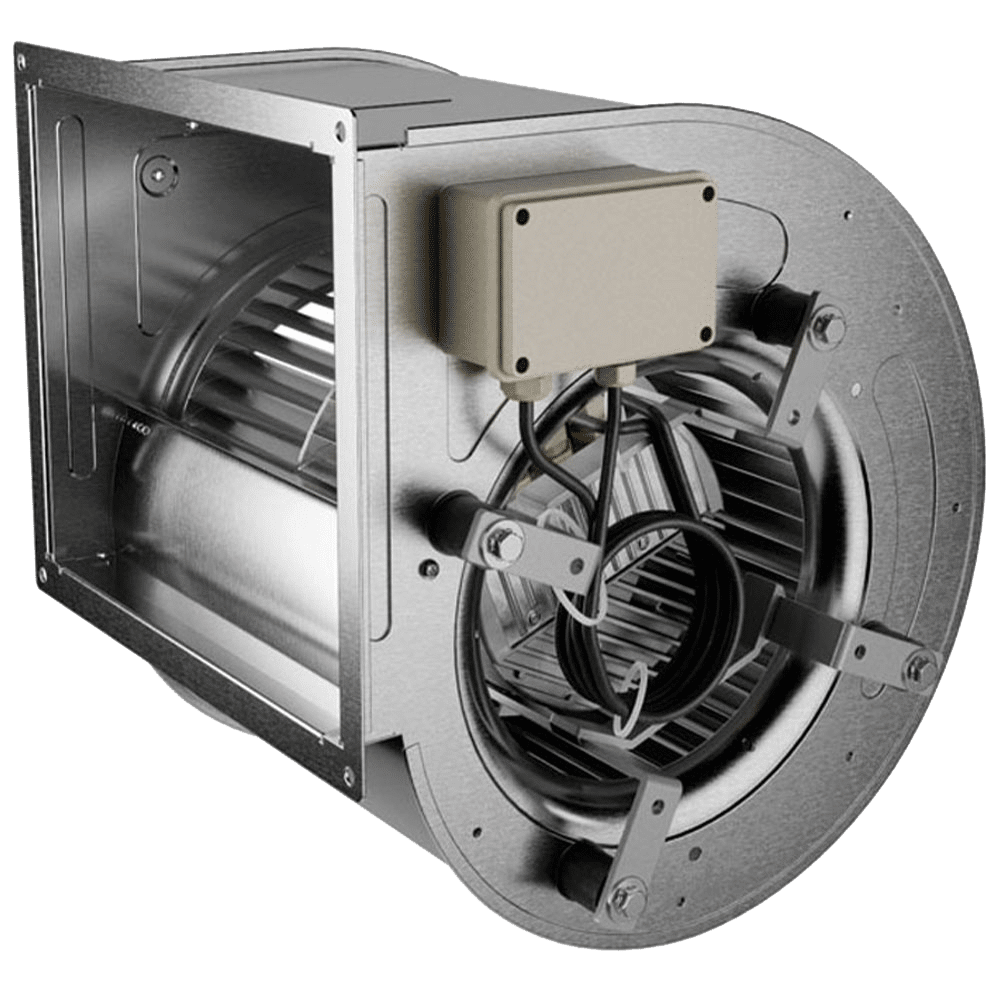

Double inlet centrifugal fans with forward curved impeller

DAREB EC brushless motor fans feature a double inlet centrifugal design that ensures high efficiency. The Italian-made motors and inverters are of high quality and come with IP 44/55 motor protection degree.

  • Galvanized sheet fans (painting or stainless-steel execution available on request).
  • Galvanized sheet screw conveyor, cold assembled with TOX point or spot welding.
  • Choose fans with forward blades, applied blades or through blades dependent on the chosen motor to achieve maximum efficiency.

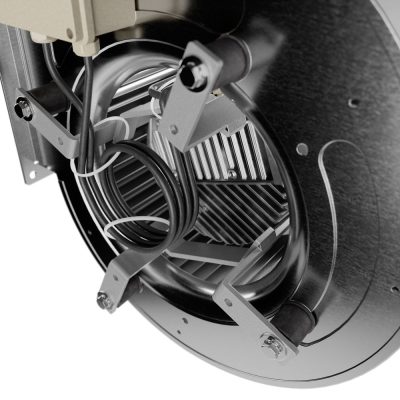

  • External rotor motor, IP 44/55 motor protection degree, with an integrated inverter.
  • Stepless speed regulation and soft-start control.
  • Continuous speed regulation via external 0-10Vdc signal or potentiometer (accessory) for manual regulation.
  • Flow rate up to 9600 m3/h.
  • Static pressure up to 1300 Pa.
  • Sizes Range: from 133/132 to 15/11.
DAREB

Technical Data DAREB

Fan Type Fan CODES ERP2015 motor power (wout) Regulation motor ip power supplies
DAREB 133/132 XPL 211100M 1F 1V + FL 111200P OK 135 0-10 Vdc - PWM 54 230/1/50-60
DAREB 133/190 XPL 211100U 1F 1V +FL 111201S OK 160 0-10 Vdc - PWM 54 230/1/50-60
DAREB 146/190 XPL3 2111003 1F 1V + FL 111201Z < 125W 200 0-10 Vdc - PWM 32 230/1/50-60
DAREB 7/7 XPL 211100E 1F 1V + FL 111202D OK 210 0-10 Vdc - PWM 44 230/1/50-60
DAREB 9/7R XPL 2032004 1F 1V 1112012 OK 500 0-10 Vdc - PWM 54 230/1/50-60
DAREB 9/9R XPL4 2032002 1F 1V 1112003 OK 500 0-10 Vdc - PWM 54 230/1/50-60
DAREB 9/9 XPL4 2032004 1F 1V 1112014 OK 500 0-10 Vdc - PWM 54 230/1/50-60
DAREB 10/8 XPL3 2032002 1F 1V 111200D OK 500 0-10 Vdc - PWM 54 230/1/50-60
DAREB 10/10 XPL 2032004 1F 1V 111201G OK 500 0-10 Vdc - PWM 54 230/1/50-60
DAREB 10/10 XPL3 2032002 1F 1V 1112009 OK 500 0-10 Vdc - PWM 54 230/1/50-60
DAREB 12/12 XPL3 2032001 1F 1V 111200C OK 1100 0-10 Vdc - PWM 54 230/1/50-60
DAREB 12/12 XPL3 2032003 3F 1V + FL 111200G OK 1500 0-10 Vdc - PWM 54 400/3/50-60
Contact us for more info
