DARE

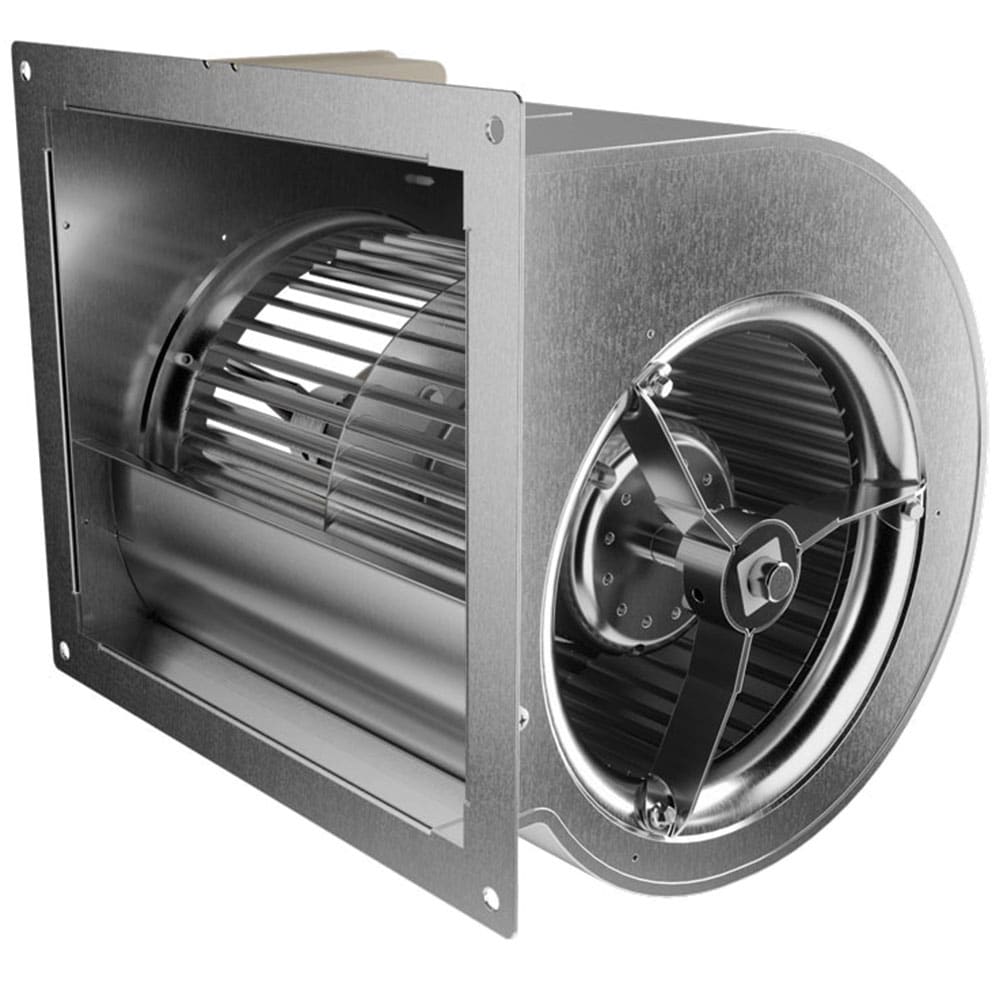

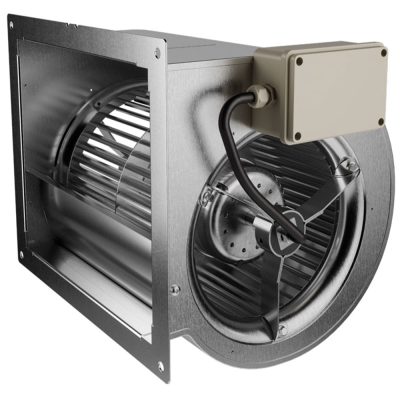

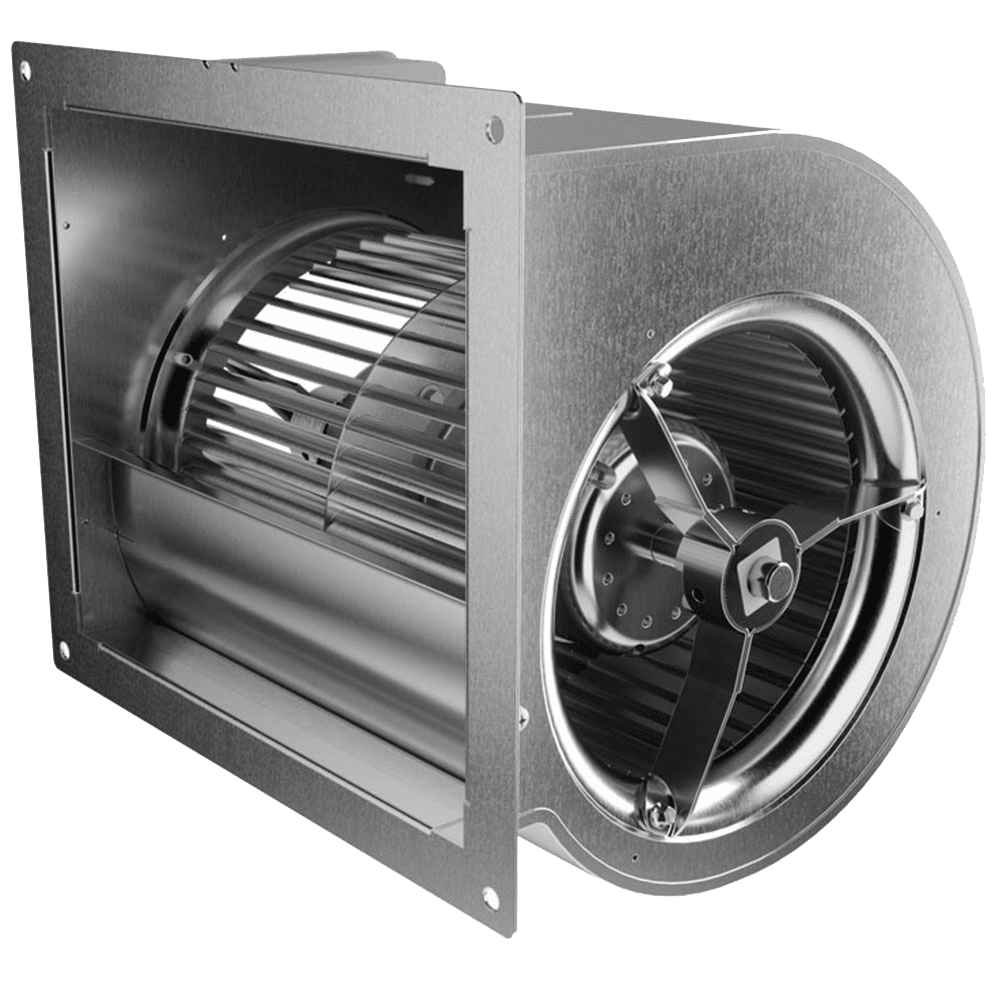

Double inlet centrifugal fans with forward curved impeller

DARE are high-quality double inlet centrifugal fans directly coupled with an AC external rotor motor. These fans are available in galvanized sheet fans, with the option for additional painting or stainless-steel execution upon request.

  • Double inlet centrifugal fans, equipped with AC external rotor motor.
  • Galvanized sheet fans (painting or stainless-steel execution available on request).
  • Galvanized sheet screw conveyor, cold assembled with TOX point.
  • Choose fans with forward blades, applied blades or through blades dependent on the chosen motor to achieve maximum efficiency.
  • Two options for electric motors (closed IP 44/55 or open IP 20), with a closed thermal protector.
  • Flow rate up to 5000 m3/h.
  • Static pressure up to 1000 Pa.
  • Sizes Range: from 120/126 to 10/10.
DARE

Technical Data DARE

Fan Type Fan CODES ERP2015 motor power (wout) pole speed motor ip power supplies
DARE 133/150 XPL 2111000 1F 2P 3V + FL 1111000 <125W 60 2 3 44 230/1/50
DARE 133/190 R2 211100D 1F 2P 1V 111101V <125W 90 2 1 54 230/1/50
DARE 160/140 XPL 2111013 1F 4P 3V +FL1 111102N <125W 45 4 3 44 230/1/50
DARE 7/7 XPL 211100A 1F 4P 3V +SCT 111100P OK 120 4 3 44 230/1/50
DARE 7/7 XPL 211100G 1F 4P 1V + SCT 1111023 OK 120 4 1 44 230/1/50
DARE 7/7 XPL 203100M 1F 4P 1V + SCT 111102F OK 180 4 1 44 230/1/50
DARE 7/7 XPL 2031008 1F 4P 1V + SCT 111102D OK 300 4 1 44 230/1/50
DARE 7/9 XPL 2031002 1F 4P 3V + SCT + GR 111100U OK 400 4 3 44 230/1/50
DARE 7/9 XPL 2031008 1F 4P 1V + SCT + FL1 111101A OK 300 4 1 44 230/1/50
DARE 7/9 XPL 2031004 1F 4P 1V+SCT 1111022 OK 400 4 1 44 230/1/50
DARE 8/9 XPL2 2031008 1F 4P 1V +SCT + FL6 111100F OK 300 4 1 44 230/1/50
DARE 9/9 XPL2 203100G 1F 4P 1V + SCT 111101H OK 550 4 1 44 230/1/50
DARE 9/9 XPL 2031002 1F 4P 3V + SCT 111102E OK 400 4 3 44 230/1/50
DARE 9/9R XPL 2031004 1F 4P 1V + SCT 1111004 OK 400 4 1 44 230/1/50
DARE 9/9R XPL 2031002 1F 4P 3V + SCT 1111003 OK 400 4 3 44 230/1/50
Contact us for more info
