DAIN

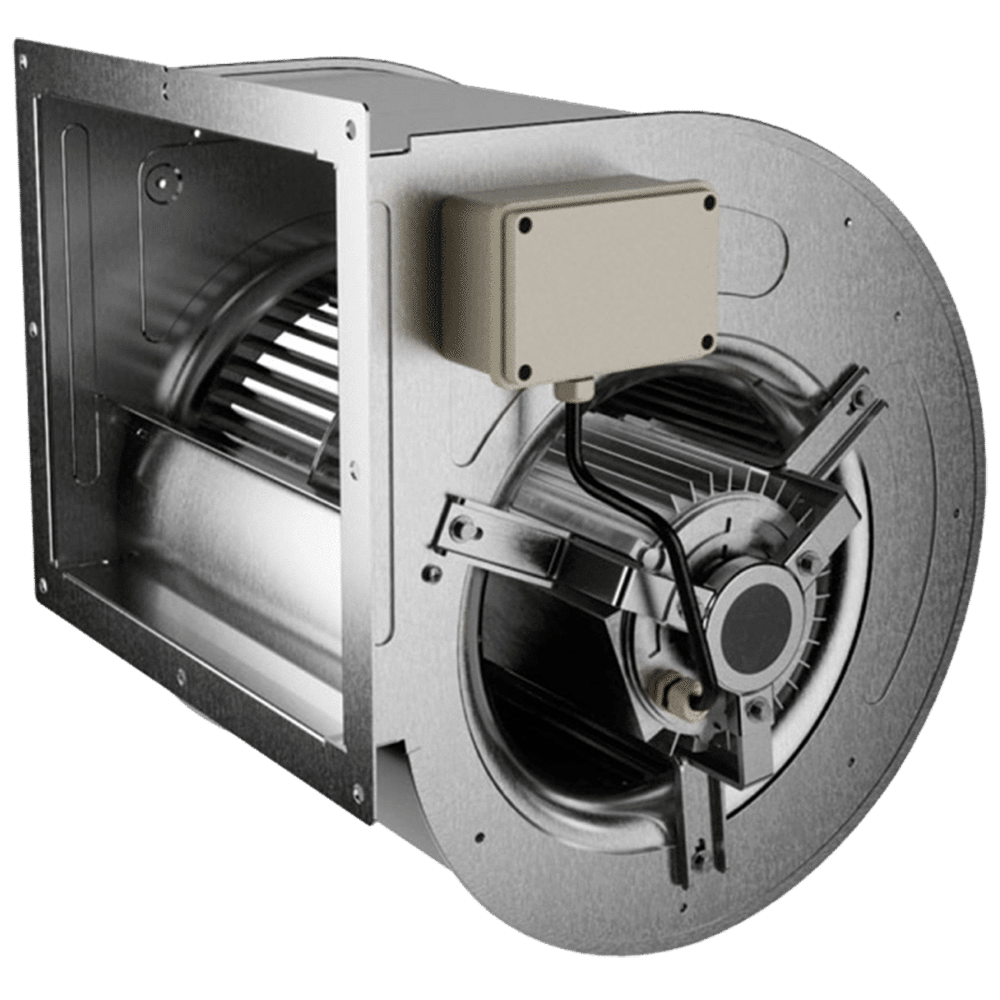

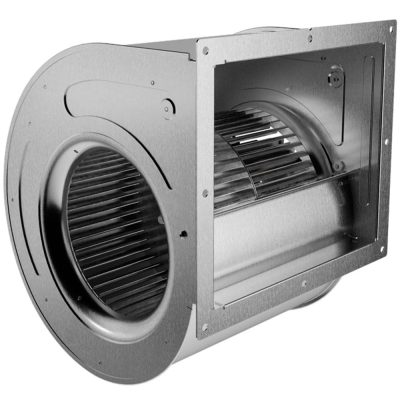

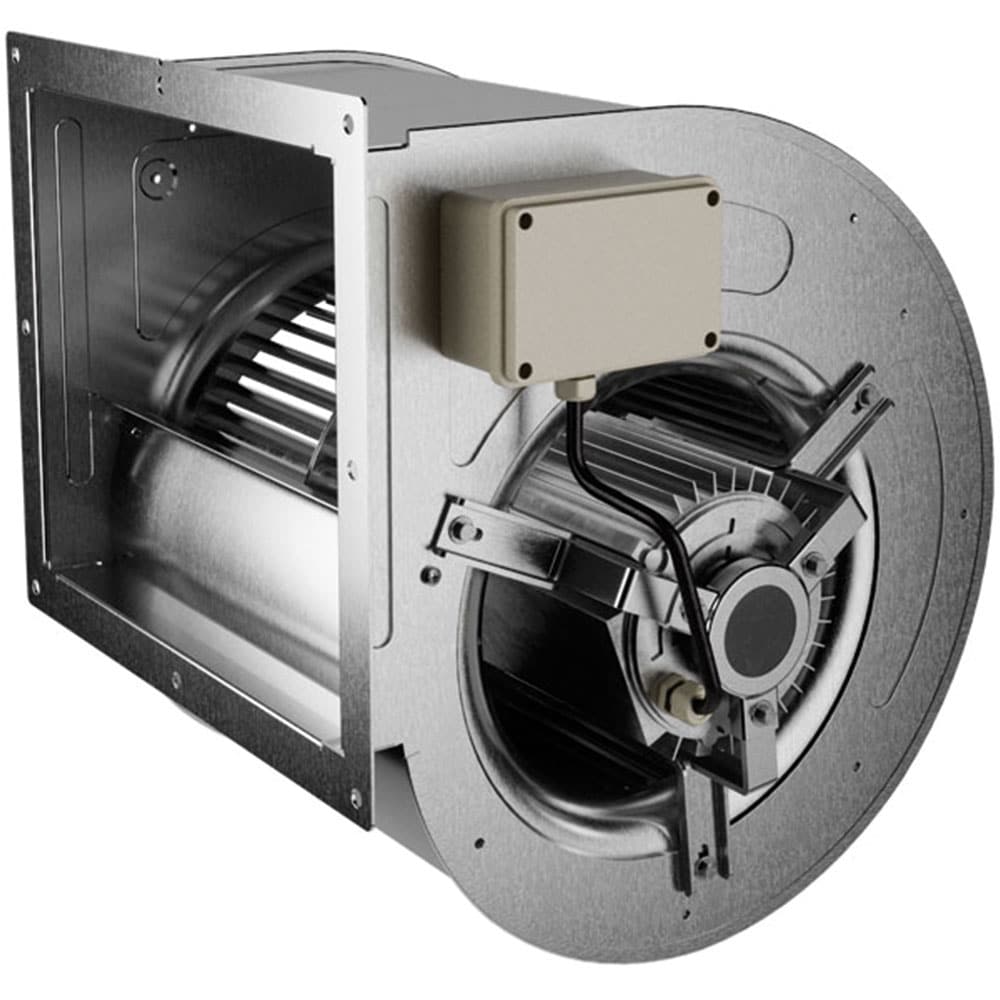

Double inlet centrifugal fans with forward curved impeller

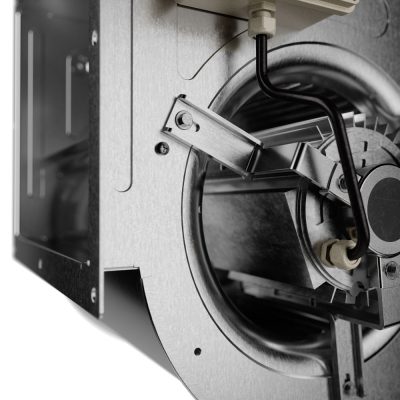

DAIN centrifugal fans are directly coupled with an AC asynchronous internal rotor motor. The double inlet design offers increased efficiency and airflow, making them an excellent choice for ventilation and air handling applications.

  • Galvanized sheet fans (painting or stainless-steel execution available on request)
  • Galvanized sheet screw conveyor, cold assembled with TOX point
  • Fans with forward blades, applied blades or through blades, dependin on the chosen motor to achieve maximum efficiency
  • Two options for electric motors (closed IP 44/55 or open IP 20), with a closed thermal protector
  • Flow rate up to 15000m3/h
  • Static pressure up to 1500 Pa
  • Sizes range from 180/240 to 15/15
DAIN

Technical Data DAIN

Fan Type Fan CODES ERP2015 motor power (wout) pole speed motor ip power supplies
DAIN 180/240R XPL 201100R 1F 1V + FL 110105M OK 750 2 1 20 230-400/3/50
DAIN 7/7 XPL MTR.4P.147.1V.IP55 1F 4P 1V 110100P <280W 147 4 1 55 230/1/50
DAIN 9/7 XPL 2011017 1F 4P 1V + SCT 1101030 OK 420 4 1 55 230/1/50
DAIN 9/7 XPL 201101A 1F 4P 3V + FL 1101035 OK 400 4 3 20 230/1/50
DAIN 9/7 XPL 201100M 1F 4P 3V 1101015 OK 420 4 3 20 230/1/50
DAIN 9/9 2011002 1F 6P 3V 110106T OK 420 4 3 20 230/1/50
DAIN 9/9 XPL 2011001 1F 4P 1V+ SCT 1101017 OK 420 4 1 44 230/1/50
DAIN 9/9 XPL 2011017 1F 4P 1V + SCT 110102T OK 420 4 1 55 230/1/50
DAIN 9/9 XPL 201101Q 1F 4P 1V + SCT 110104F OK 550 4 1 54 230/1/50
DAIN 9/9 XPL 201102E 1F 4P 3V 110106C OK 420 4 3 20 230/1/50
Contact us for more info
